chipset

Intel C612

CPU Socket

supports Intel LGA2011-3 platform processor

memory slot(s)

4 x DDR3+4 x DDR4 memory slot(s), supports server memory

Memory Standard

supports quad-channel DDR3 1866/1600/1333MHz specification memory, DDR4 2400/2133/1866MHz

specification memory, D3/D4 max support respectively 128GB, does not support D3/D4 simultaneous use

(DDR3 memory requires pairing with supports Xeon E5-2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/

E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4）

Storageport

4 x SATA3.06Gbps HDD port, 4 x SSATA3.06Gbps HDD port

Expansion Slots

2 x PCIExpress3.0x16 slot, 1 x PCIExpress3.0x4 slot, 2 x PCIExpress2.0x1 slot

expansionport

1 x M.2 2280 NVME PCIEX43.0 32Gbps, 1 x M.2 2280NVME PCIEX42.0 20Gbps, 1 x M.2WIFI(NGFF protocol)

Onboard Audio

7.1 -channel sound card

Onboard LAN

Gigabit LAN

Power Supplyport

24PIN+8PIN

Fan Headers

1 x CPU_FAN header, 2 x SYS_FAN header

Power Phases

6 -phase power supply

PCB Layers

10 Layer

Motherboard

Specifications

300*244MM ATX form factor

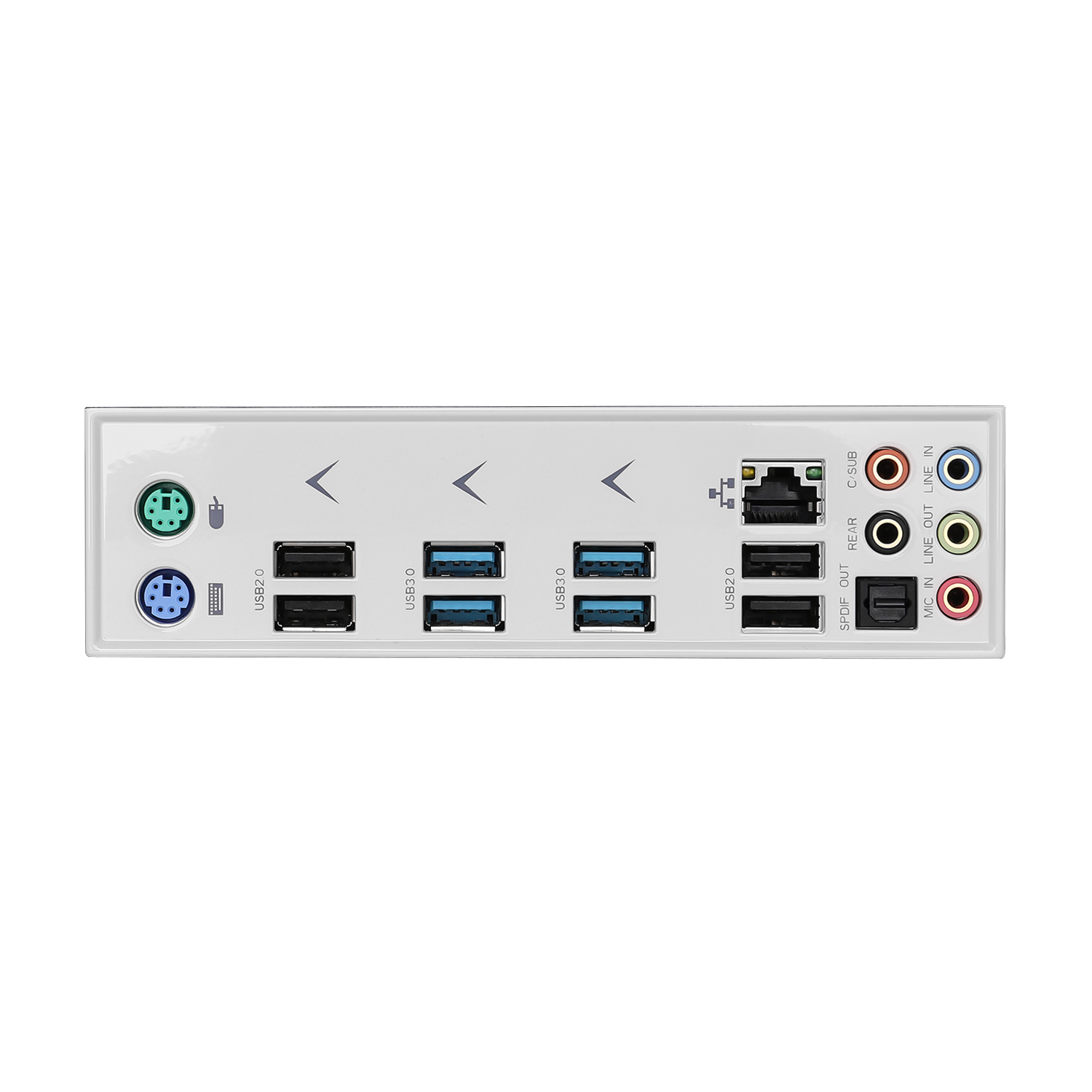

Rear Panelport

1 x PS/2 keyboard/mouse port, 4 x USB2.0 port, 4 x USB3.0 port, 1 x LAN port, 1 x 5 -hole audio port,

 1 x optical audio port (integrated in audio port on)

Front Panelport

2 x USB2.0 header (among which 1 set controlled via jumper cap WIFI Bluetooth function), 1  x  USB3.0 header,

1  x  front audio header, 1  x  COM header, 1 x motherboard buzzer, 1 x motherboard debug card,

1  x power/reset button，1x TPM2.0 14-1，3x5V 1x12V RGB PIN/

Supported OS

Windows7Windows10Windows11

BIOS

AMIUEFIBIOS

Package Contents

1 Piece motherboard, 2 Piece SATA SATA data cable, 1 Piece IO I/O shield, 1 warranty card
